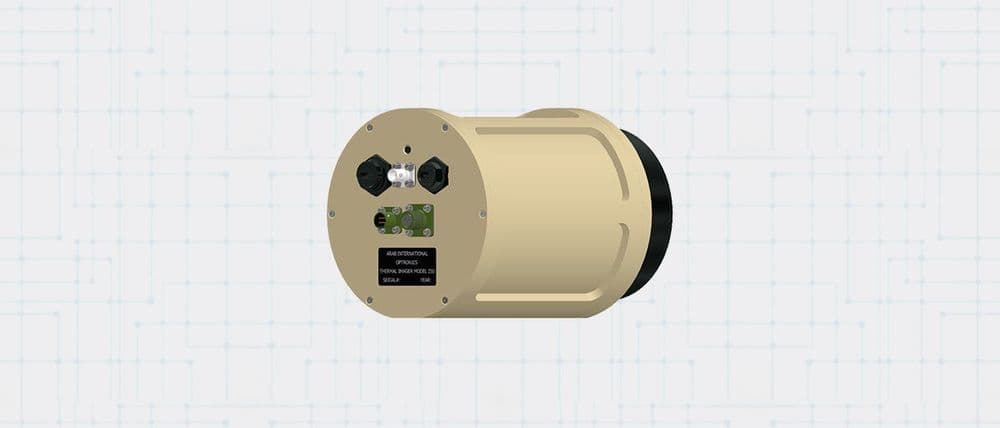

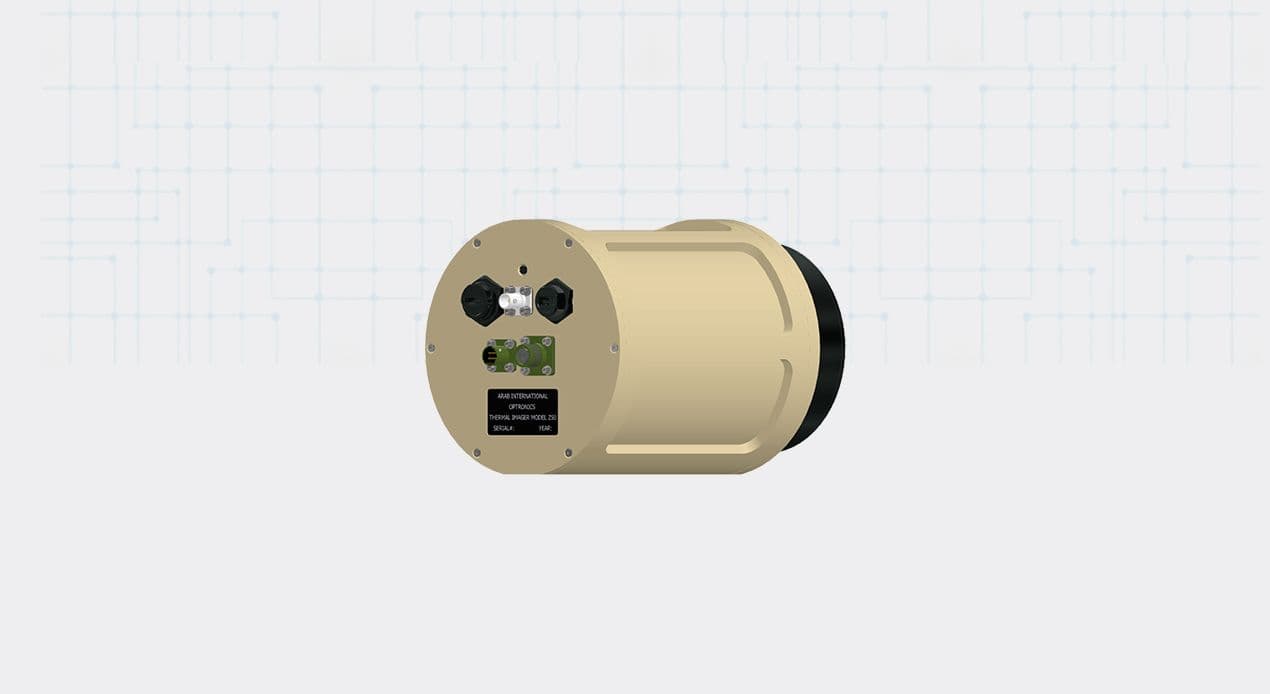

Z50
Long-Range Thermal Imager
Product Overview
Unrivaled Vision, Exceptional Reach
The Z50 is a powerhouse of long-range thermal technology, specifically engineered for high-stakes surveillance and precision aiming. Utilizing a massive 1280 X 1024 pixel uncooled microbolometer, it delivers ultra-high-definition thermal imagery that pierces through darkness and battlefield obscurants. Designed to meet the most rigorous military standards, the Z50 is the ultimate solution for operators who require a clear, high-fidelity tactical picture over vast distances.
Core Strengths
Ultra-High Resolution Core
Powered by a cutting-edge 1280 X 1024 sensor, providing four times the detail of standard thermal imagers.
Athermalized Optical Mastery
Features a specialized 120mm lens that maintains perfect focus automatically across shifting temperatures.
Military-Grade Resilience
Fully compliant with MIL-STD-810H standards, ensuring mission success in the world’s most hostile environments.
Tablet-Integrated Interface
Streamlines operations through a massive, high-definition 13.3-inch tablet display for superior situational awareness.
Technical Specifications
Detector Type
Uncooled Microbolometer (1280 X 1024 Pixels)
Pixel Pitch
Ultra-fine 12µm for maximum detail
Field of View (HxV)
7.3° X 5.8° Wide-Angle perspective
Thermal Sensitivity
< 40 mk @ 300$K, f/1.0 (NETD)
Spectral Band
8–14µm (Long-wave Infrared)
Power Consumption
High-efficiency 4W @ 5V
Visual Showcase
Advanced Features
High-Definition Tactical Display
Experience the battlefield in stunning detail on a full HD interface that allows for rapid target identification and shared intelligence.
- 13.3-inch Full H.D. Tablet Display.
Advanced Athermalized Optics
Eliminate manual focus adjustments during rapid temperature changes, ensuring your view remains sharp from dawn until dusk.
- 120mm Athermalized Objective Lens with f/1.0 aperture.
Extreme Temperature Performance
Maintain total operational control in conditions ranging from freezing nights to blistering desert heat.
- Certified operating range from -20°C to +60°C.
Performance ranges
Identification
600 mRecognition
1000 mDetection
3000 m
Identification
1900 mRecognition
3000 mDetection
7000 mKey Capabilities
