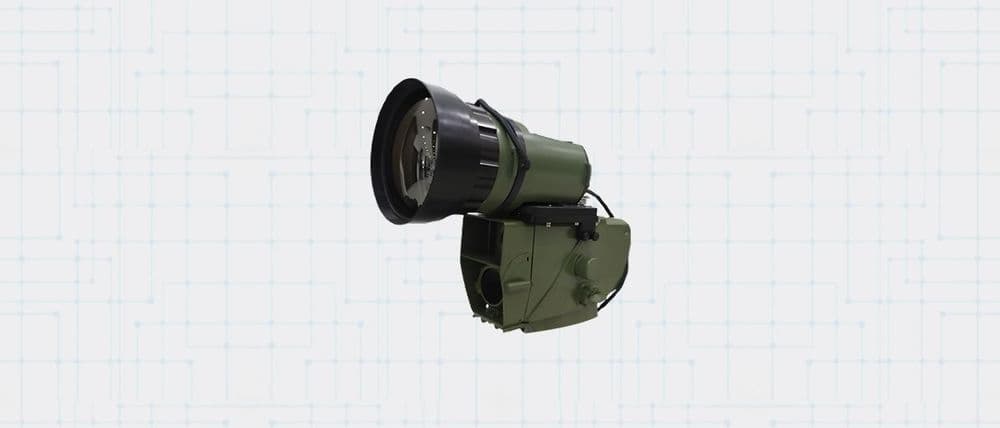

D69-T
An Integrated Uncooled Thermal Sighting System
Product Overview
Precision Sighting for the Modern Battlefield
The D69-T is a high-precision, uncooled thermal aiming system specifically engineered for seamless integration with anti-tank rocket launchers. Designed to deliver superior target discrimination, it provides operators with a clear, accurate thermal feed across diverse and challenging battlefield conditions. By transmitting real-time imagery to a dedicated eyepiece mounted alongside the launcher's daytime sight, the D69-T ensures that mission-critical accuracy is never compromised by darkness or environmental obscurants.
Core Strengths
Dual-Platform Versatility
Optimized for use on armored vehicle launchers or as a mobile ground-based system.
High-Accuracy Discrimination
Delivers exceptional detection and recognition capabilities to identify threats at extreme distances.
Rapid Combat Readiness
Features a lightning-fast 6-second startup time to ensure you are ready for engagement at a moment's notice.
Military-Grade Resilience
Fully compliant with MIL-STD-810 environmental standards for maximum reliability in the field.
Technical Specifications
Spectral Band
8-14µm
Field of View (HxV)
4.2° x 3.1°
Thermal Sensitivity
≤50 mK
Operating Temp
-20°C to +65°C
Visual Showcase
Advanced Features
Multi-Stage Visual Zoom
Gain a tactical advantage with a combination of high-power optical magnification and versatile digital zoom layers.
- 8.25x Optical magnification with 2x and 4x Electronic zoom options.
Dynamic Reticle Management
Adapt your aiming solution instantly with a variety of electronically projected reticle patterns tailored for different targets.
- Supports up to 8 digitally controlled, selectable reticle patterns.
Integrated Command Output
Enable shared situational awareness by exporting live thermal feeds to external displays or recording units.
- Built-in Analog video output (Analog video O/P).
Performance ranges
Identification
460 mRecognition
885 mDetection
3050 m
Identification
1300 mRecognition
2530 mDetection
8100 mKey Capabilities
