D57
Uncooled Thermal Imaging Camera
Product Overview

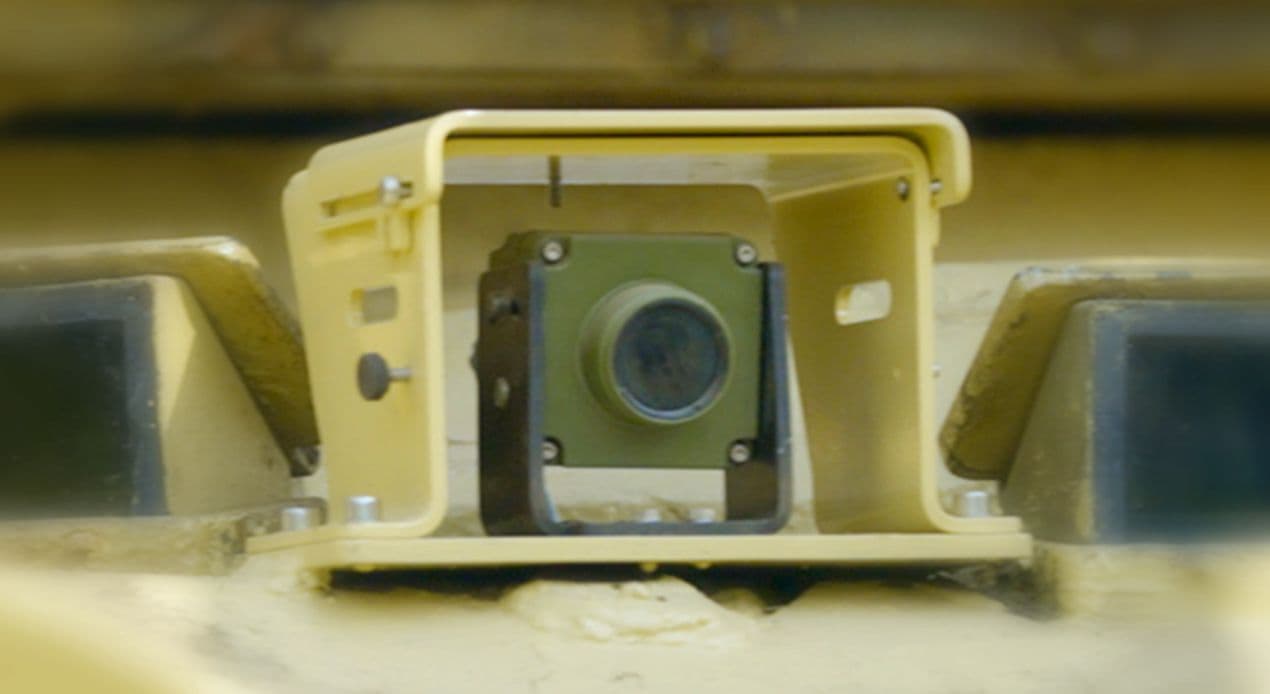

The D57 Uncooled Thermal Imaging Camera is the ultimate visibility solution for armored vehicle operators. Engineered by Arab International Optronics (AIO), this rugged system utilizes a cutting-edge external camera and an in-cabin military display to provide drivers with a clear thermal view of their surroundings, regardless of dust, smoke, or total darkness.
Core Strengths
Tactical "Eyes-Out" Vision
Provides drivers with a high-resolution thermal feed from an externally mounted camera directly to a ruggedized cockpit display.
Rapid Mission Readiness
Designed for high-speed deployment with a lightning-fast startup time of just 6 seconds.
Ultimate Combat Durability
Fully qualified under MIL-STD-810H, ensuring peak performance in the most extreme environmental conditions.
Compact Powerhouse
Packs high-end thermal capabilities into a lightweight 700g frame, minimizing the vehicle's external profile.
Technical Specifications
Resolution
640 x 480 Pixels
Magnification
1X
Field of View (HxV)
40 x 30
Weight
700 gm

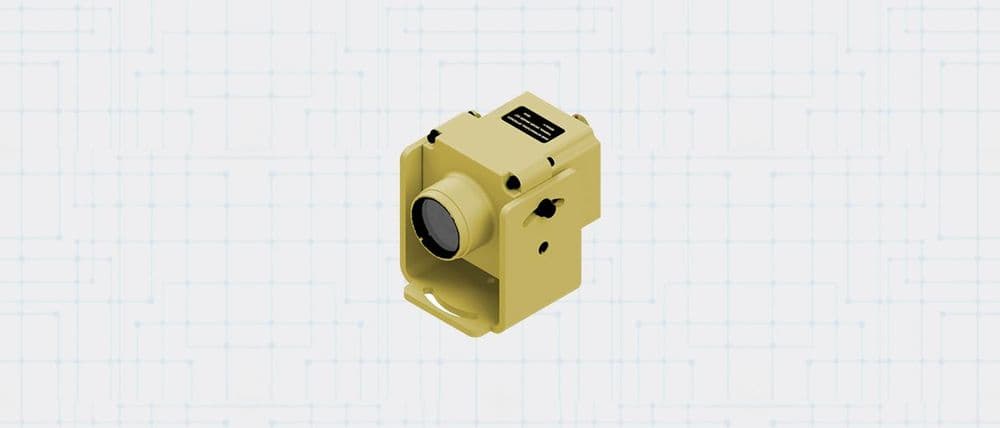

Visual Showcase
Advanced Features
Fixed Athermalized Lens
Features advanced optics that maintain perfect focus automatically across shifting temperatures, eliminating the need for manual adjustment.
- 15 mm Fixed Athermalized Lens.
Adaptive Color Palettes
Offers multiple viewing modes to optimize contrast based on the specific terrain or environmental interference.
- White Hot, Black Hot, and optional various color modes.
High-Sensitivity Imagery (NETD)
Detects minute temperature differences to deliver a crisp, detailed image even in low-contrast environments.
- <50 mK (at F1, 300K, 25-50 Hz)
Key Capabilities
Get in Touch
Datasheet
Download detailed technical specifications
