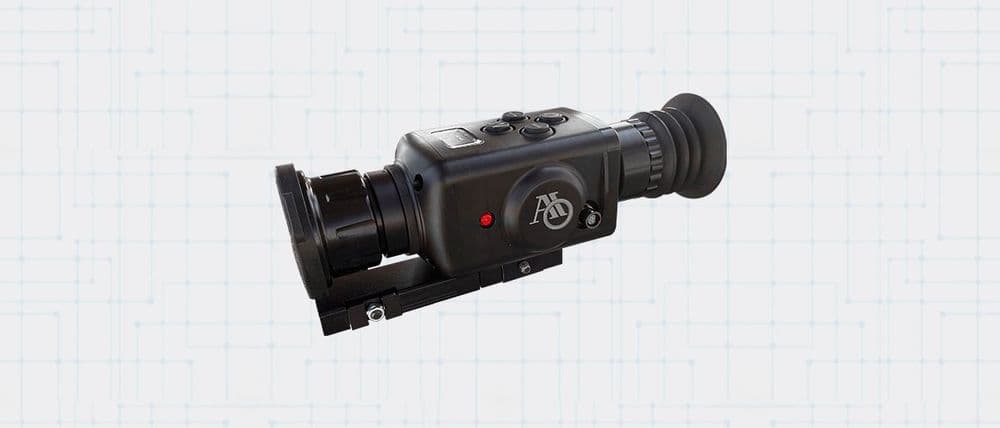

D27
Uncooled Aiming Thermal Imager for small weapon
Product Overview
Precision in Every Pixel
The D27 is a cutting-edge, high-sensitivity thermal weapon sight designed for operators who demand absolute clarity in the field. Utilizing advanced uncooled 640 x 480 pixel resolution, it delivers highly detailed imagery directly to the eyepiece or an external monitor, ensuring you never miss a critical detail. Compact, lightweight, and built to rigorous military standards, the D27 is the ultimate tactical advantage for modern field operations.
Core Strengths
High-Definition Thermal Sensing
Features a 17µm pitch detector for crisp, high-contrast imaging in complete darkness.
Ruggedized Reliability
Manufactured to strict military standards (MIL-STD-810H) to endure the harshest environmental conditions.
Ultra-Lightweight Profile
At just 650g, it provides superior tactical mobility without weighing down your equipment.
Intuitive Digital Control
Equipped with a digitally controlled boresight and reticle patterns for rapid, precise target acquisition.
Technical Specifications
Field of View (FOV)
12.9° x 9.7°
Optical Magnification
2.4X
Spectral Band
8-14µm
Visual Showcase
Advanced Features
Integrated Mission Capture
Document every engagement with built-in high-capacity storage for critical after-action reviews.
- Internal 32 GB memory for photos and video.
Rapid Data Transfer
Seamlessly move mission data from the device to secondary systems for analysis or sharing.
- High-speed transfer via USB cable.
Intelligent Power Monitoring
Maintain operational awareness with a real-time tracking system for your power levels.
- On-screen battery consumption indicator.
Performance ranges
Identification
200 mRecognition
250 mDetection
1100 m
Identification
550 mRecognition
1100 mDetection
3250 mKey Capabilities
