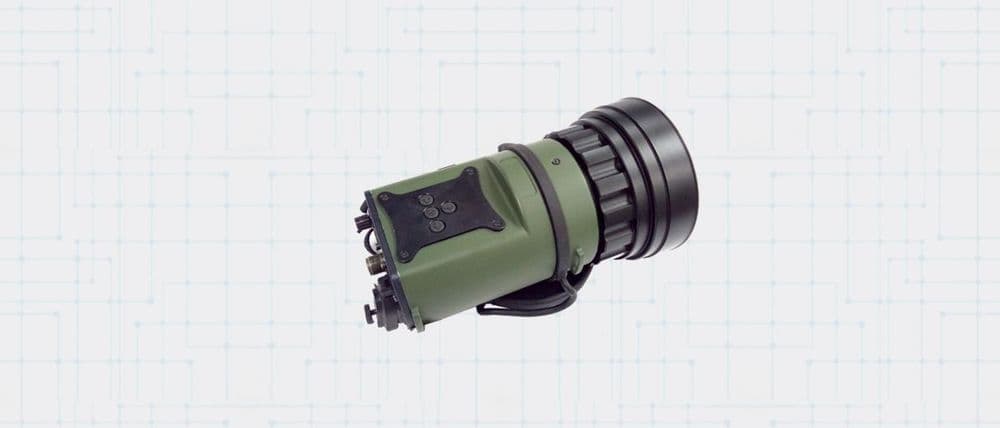

D59
An Integrated uncooled thermal sight system for anti-tank launchers.
Product Overview
## Precision Redefined for the Modern Battlefield
The D59 is a high-performance, integrated uncooled thermal sight system engineered to provide absolute dominance for anti-tank missile operations. Designed for versatility, it seamlessly integrates with various armored vehicle launchers or can be deployed as a standalone ground-based tripod system. By delivering a direct thermal feed to a dedicated eyepiece mounted alongside daytime optics, the D59 ensures that operators maintain high-accuracy target acquisition and recognition in even the most challenging field conditions.
Core Strengths
Tactical Versatility

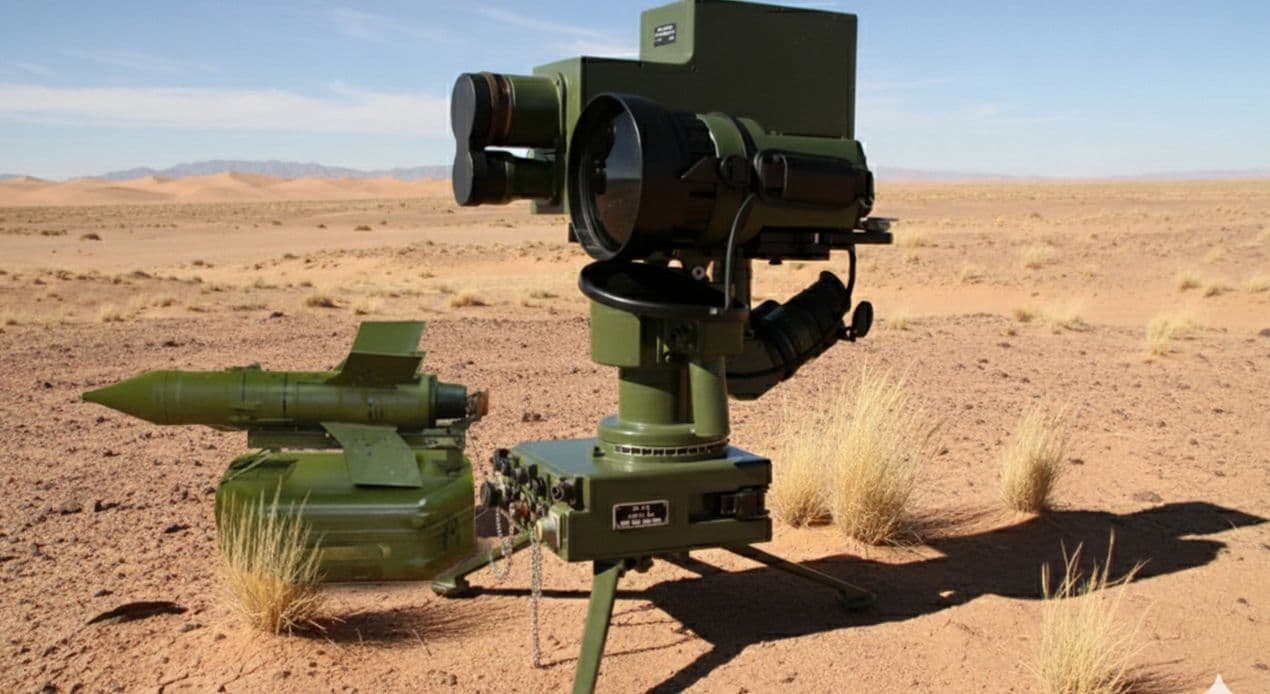

Effortlessly transitions between armored vehicle mounting and tripod-based ground operations.
Rapid Mission Readiness
Optimized for speed with a startup time of just 6 seconds, ensuring you are ready before the threat emerges
Uncompromising Durability
Built to withstand the rigors of combat, fully compliant with the MIL-STD-810H military standard.
High-Fidelity Awareness
Utilizes a 640 x 480 pixel microbolometer to deliver ultra-sharp thermal imagery in total darkness or smoke.
Technical Specifications
Spectral Band
8-14µm
Field of View (HxV)
4.2° x 3.1°
Operating Endurance
18650 Li-ion battery or external supply
Visual Showcase
Advanced Features
Enhanced Optical Reach
Dominate long-distance engagements with a powerful primary lens and secondary electronic magnification layers.
- $150$ mm Objective E FL with 8.25x Optical and 2x/4x Electronic zoom.
Adaptive Reticle Logic
Customize your aiming solution with a variety of digitally controlled patterns tailored to different missile systems and ranges.
- Up to 8 electronically projected, digitally controlled reticle patterns.
Strategic Video Integration
Export real-time thermal feeds to external monitors or command centers for coordinated squad awareness.
- Supports analog video output (Analog video O/P).
Performance ranges
Identification
460 mRecognition
885 mDetection
3050 m
Identification
1300 mRecognition
2530 mDetection
8100 mKey Capabilities
Get in Touch
Datasheet
Download detailed technical specifications
