Product Overview
Dominate the Dark

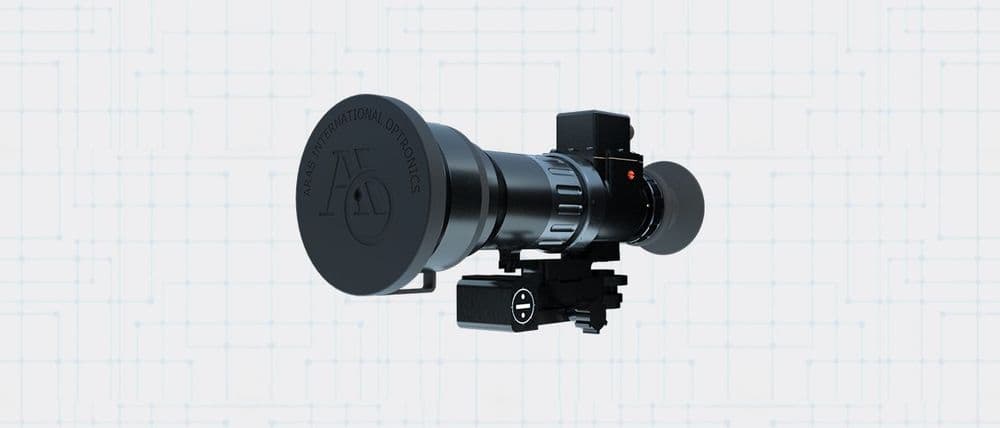

The MAX OWL is a premier long-range night vision aiming device engineered for medium-range weapon systems. Utilizing advanced 18mm image intensifier technology, it provides a powerful 6x magnification that turns near-total darkness into a clear tactical advantage. Whether deployed for border security or intensive field operations, the MAX OWL offers the high-resolution clarity and rugged reliability needed to maintain total control of the night.
Core Strengths
Superior 6x Magnification
Specialized optics designed to bring distant targets into sharp focus with elite precision.
Intensified Intelligence
Powered by high-performance Gen2+ or Gen3 image tubes for maximum light gathering in starlight conditions.
Lightweight Durability
A robust, military-grade build that weighs less than 1.6kg, minimizing the load on your weapon system.
Rapid Target Discrimination
Exceptional image resolution allows operators to distinguish between threats and non-threats instantly.
Technical Specifications
Optical Magnification
6X Power
Spectral Response
0.45µm – 0.9µm
Objective Lens EFL
150 mm (f/1.8 High-Speed Optics)
Field of View
6.8° Focused Perspective
Image Resolution
5.8 lp/mrad for Ultra-Clarity
Operating Endurance
> 40 Hours at 22°C
Visual Showcase
Advanced Features
Versatile Intensifier Core
Adapt your hardware to your specific mission requirements with a housing compatible with the world's leading image intensification technology.
- Supports both 18mm Gen2+ and Gen3 Image Intensifier Tubes.
Precision Range Focusing
Maintain absolute clarity from mid-range to the horizon with a wide, adjustable focus system designed for diverse environments.
- Manual focus range from 25m to Infinity.
Ergonomic Visual Interface
Designed for long-duration surveillance, featuring a wide diopter adjustment range to ensure perfect focus for every operator.
- +2dpt to -4dpt diopter range with 25mm eye relief.
Performance ranges
Recognition
400 mDetection
650 m
Recognition
900 mDetection
1500 mKey Capabilities
